    Glacier RT 10

    Glacier RT Vertical and Horizontal

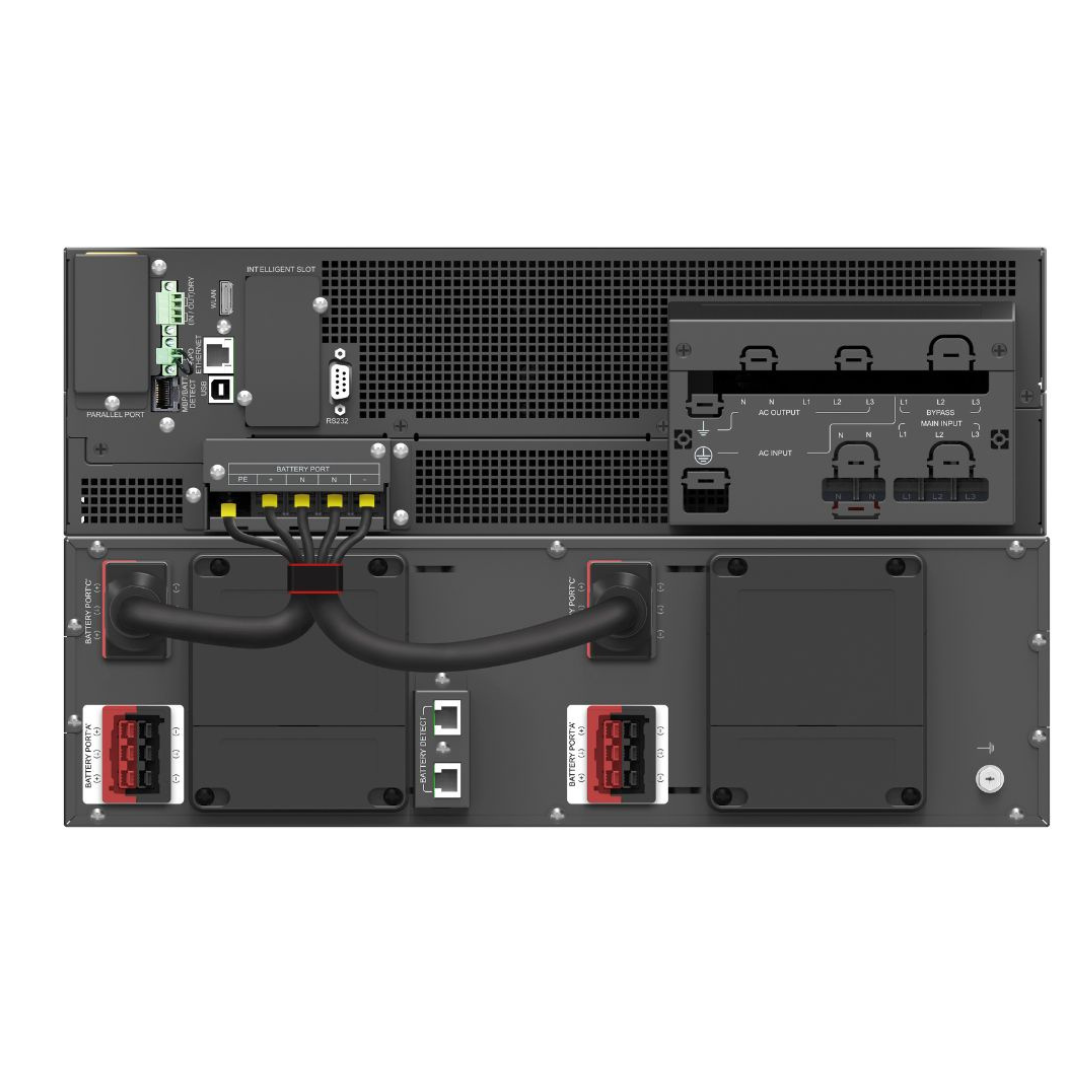

    Glacier RT 10 rear panels wired

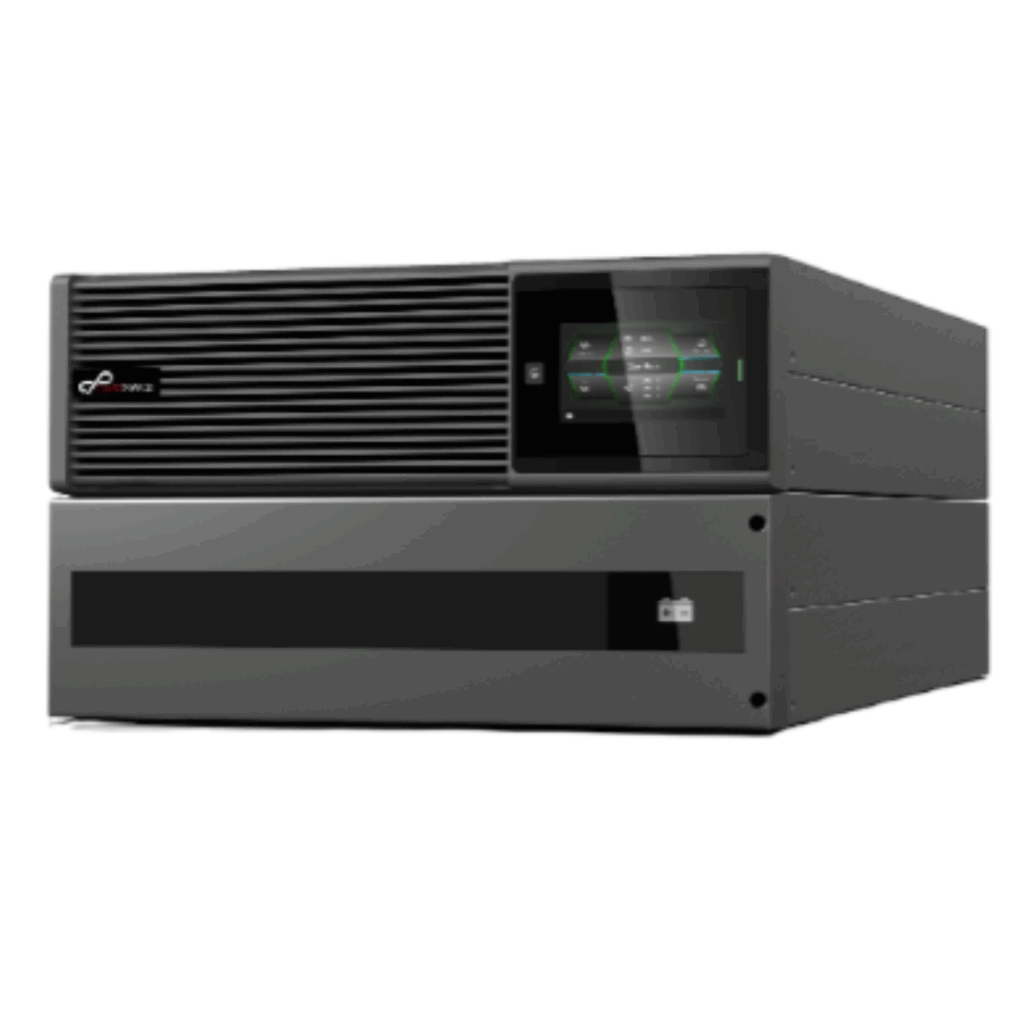

    Glacier RT 10

    Glacier RT 10 boasts industry leading Online efficiency. With a Power Factor of 1 this 10kVA, 10kW UPS has three modes of operation – 3:3, 3:1 and 1:1 to suit a variety of power supply needs. Rack or tower configurable, the compact 3U Glacier RT 10 may be supplied with up to four matching 3U Battery Banks. In applications requiring greater battery backup, Glacier RT 10 can also be supplied with one or more external battery cabinets using larger Amphour rating batteries. Up to three Glacier RT 10’s may be connected in parallel. The colour LCD touchscreen automatically rotates to allow easy reading whether in rack or tower configuration.

    Features:

    • Unity power factor provides more power
    • Excellent online double conversion efficiency up to 96%
    • ECO+ mode efficiency up to 98% for greater power savings
    • Fits rack depth from 800mm
    • Built-in OVCD protection, fan lock detection, over temperature
    • Detection and overload warning to enhance the product reliability
    • Up to 10 minutes Line mode overload capacity at 125% rated load
    • Automatic detection of additional Battery Banks
    • Digital charger 0-13A adjustable
    • Parallel configuration available (up to 3 units)
    • IoT (Internet of things) provides real time monitoring, remote control and predictive maintenance
    • Smart charging method to increase the battery life

    Physical Dimensions L x W x H (mm):

    UPS

    • 28kG – 438 x 589 x 129

    Battery Bank

    • TBA

    Technical Data Sheet:

    Applications for this UPS include:

    • Critical IT Infrastructure including large server rooms and data centres
    • Industrial
    • Manufacturing
    • Medical
    • Security

    Operating Systems supported:

    • Glacier RT UPS is compatible with free software Winpower G2 which is available with operating systems Windows, Linux, and MacOSX.

    Note: Other operating systems may be supported. For more information please contact Chase Power.

    Connection:

    • Hardwired installation by qualified personnel

    Management:

    • USB
    • RS-232
    • Options: SNMP, AS400, CMC Card (RS485)

    Software:

    • Glacier RT 10’s free UPS monitoring WinPower software can be downloaded from

    http://www.ups-software-download.com/content/ups-download-software/download.html

    UPS Supplied with:

    • UPS User Manual
    • Dry-Contact Plug
    • Feet
    • Rack-Mounting Ears
    • Mounting Screws

    Optional Accessories:

    • Glacier RT Rackmount Slider Kit
    • Glacier RT Rackmount Maintenance Bypass Switch
    • Network Management SNMP Card
    • AS400 Card
    • CMC Card
    • Environmental Monitoring Probe
    • External Wrap Around Maintenance Bypass Switch (wall mount)
    • Parallel Kit
    • UPS replacement batteries
