Physical Dimensions W x L x H (mm):
- Guardian 20 – 239 KG – 500 x 859 x 887
- Guardian 30 – 309 KG – 500 x 859 x 887
- Guardian 40 – 346 KG – 500 x 859 x 887

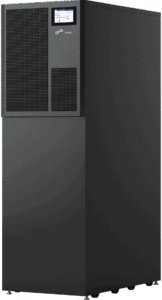

- Guardian 60 – 530 KG – 500 x 846 x 1500
- Guardian 80 – 630 KG – 500 x 846 x 1500
Technical Data Sheet:
Applications for this UPS include:
- Airports
- Telecoms
- Data Centres
- Financial Services
- Security and Surveillance Systems
- Automatic Control Systems
- Building Management
- Manufacturing process control
- Petro chemical industry
Operating Systems supported:
- Guardian Series UPS is compatible with free software Winpower G2 which is available with operating systems Windows, Linux, and MacOSX.
Note: Other operating systems may be supported. For more information please contact Chase Power.
Connection:
- Hardwired installation by qualified personnel
Management:
- USB
- RS-232
- Options: SNMP, AS400, CMC Card (RS485)
Software:
- Guardian Series UPS monitoring WinPower software can be downloaded from
http://www.ups-software-download.com/content/ups-download-software/download.html
UPS Supplied with:
- UPS User Manual
- Dry-Contact Plug
Optional Accessories:
- Network Management SNMP Card
- AS400 Card
- CMC Card
- Environmental Monitoring Probe
- External Wrap Around Maintenance Bypass Switch (wall mount)
- Parallel Kit
- UPS replacement batteries
