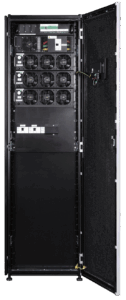

Zeus Pro 75 Ext

Zeus Pro 75 Ext

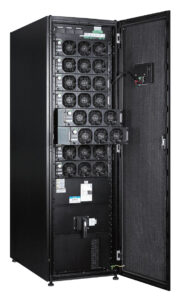

Zeus Pro 200 Ext

Zeus pro 200 ext

Our Zeus Pro modular UPS Series provides almost endless possibilities when it comes to scalability, flexibility, energy saving and reliability.

Features:

  • Output power factor 1.0
  • Double conversion on-line technology
  • Conformal coating
  • Three-level bridge IGBT PWM control

  • 99% efficiency in ECO mode
  • 96% efficiency in inverter mode
  • 25~200kVA per frame
  • Parallel up to 4 frames and 800kVA
  • Intelligent battery management

  • Adjustable battery quantity
  • High flexibility and expandability
  • Large colorful touch-screen LCD
  • Hot-swappable UPS power modules
  • Separate and common battery solutions available

Modular Design

Zeus Pro’s modular design offers great flexibility in configuration and can more readily adapt to changing power requirements than a standard UPS.  Zeus Pro uses 3 different cabinet types with up to 8 x 25kW UPS power modules (UPM) to achieve 25kW to 200kW power rating.  Zeus Pro’s cabinets are adaptable for top or bottom cable entry which makes for flexible system installation and deployment in the field.

Versatility

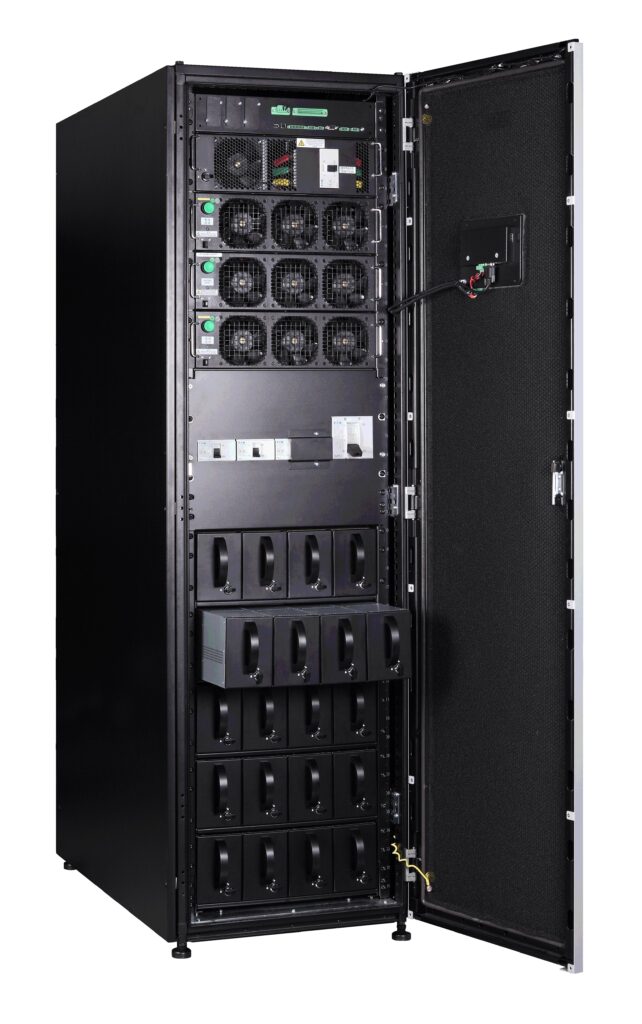

Zeus Pro 75 Int is offered with an internal battery solution eliminating the need for an external battery cabinet and providing more than 50% space-saving.

Zeus Pro features Optimized Battery Management (OBM). OBM brings three stage charging logic: Charge, Float and Rest Mode.  OBM increases the battery service life by 50% compared to batteries in UPS systems that are trickle charged, so significant reductions in service labour and maintenance costs may be expected.

Parallel Possibilities

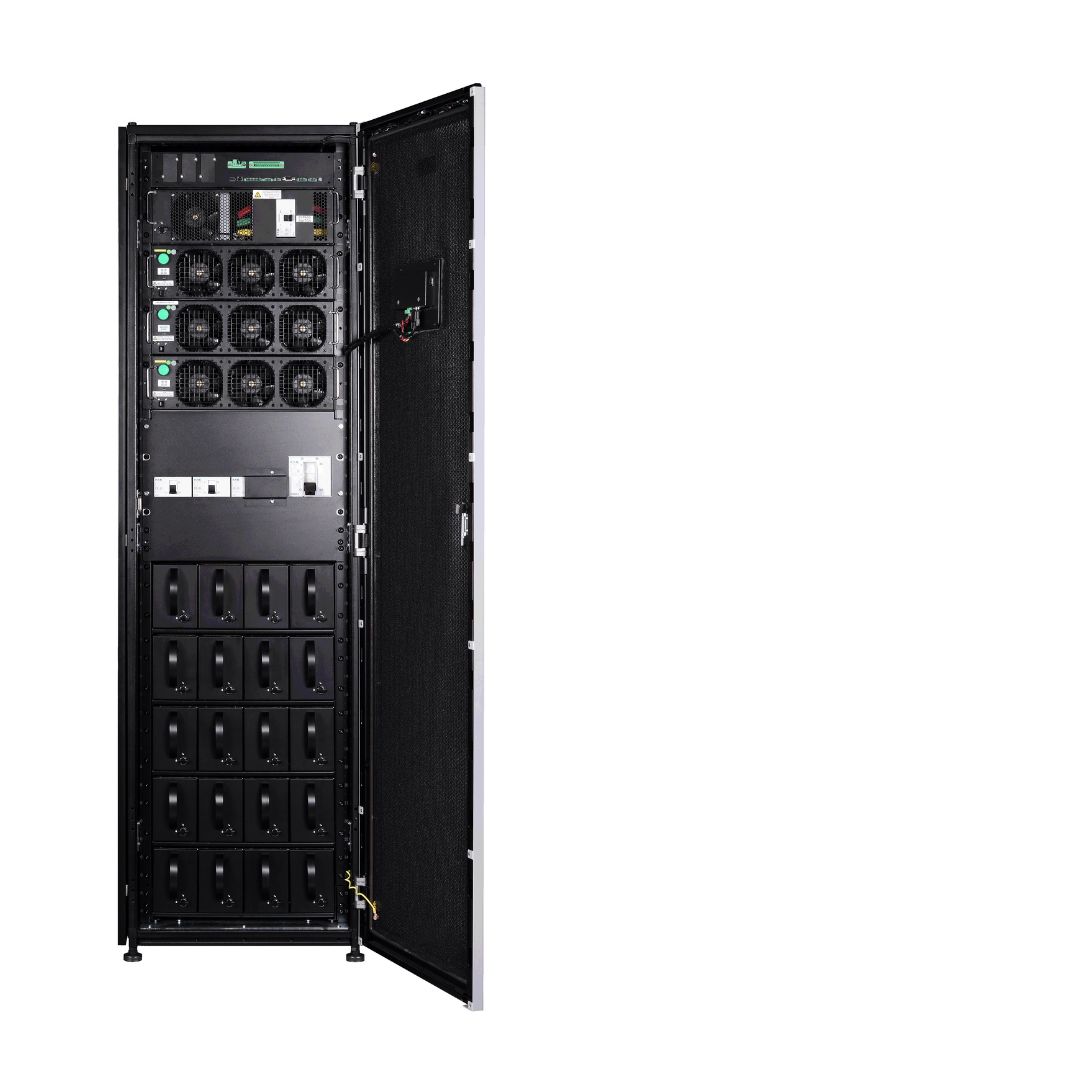

Up to four cabinets may be paralleled. 200kW to 800kW (up to four cabinets in parallel)

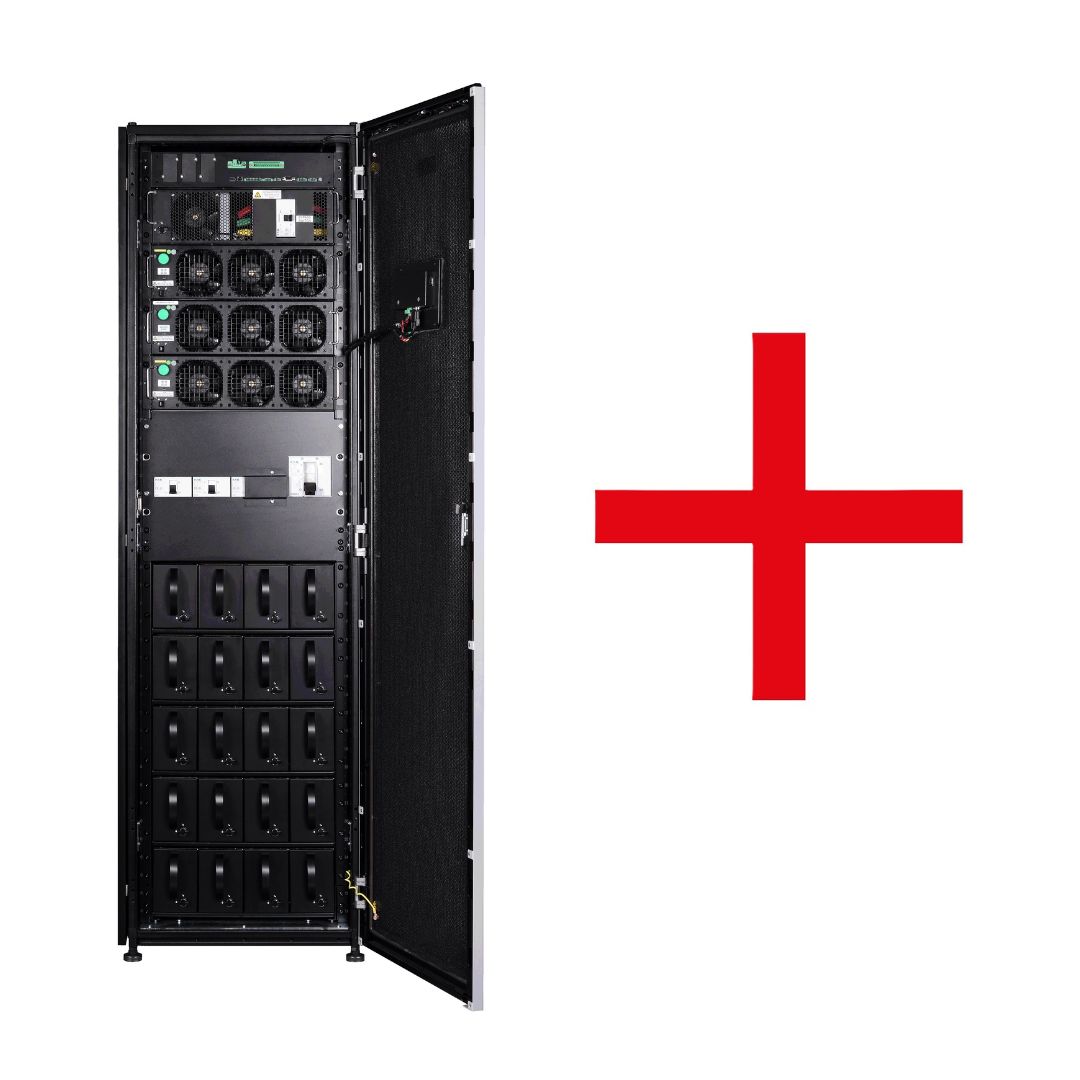

Zeus Parallel Plus
Zeus Parallel Plus
Zeus Parallel Plus
Model (WxDxH) mm RatingDimension (WxDxH) mmWeight kg
Zeus Pro 75 Int25 - 75 kVA600 x 1100 x 2020262
Zeus Pro 75 Ext25 - 75 kVA600 x 1100 x 2020336
Zeus Pro 200 Ext25 - 200 kVA603 x 1013 x 2050368

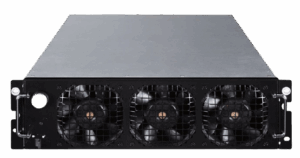

Zeus Pro UPS Power Module600 x 1100 x 205027.5

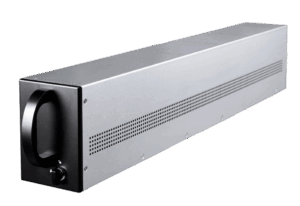

Zeus Pro Battery Module600 x 1100 x 205031

Technical Data Sheet:

Applications for this UPS include:

  • Data centre
  • Telecom
  • Industrial
  • Banking and Financial Services
  • Security and surveillance system
  • Automatic control system
  • Building management
  • Manufacturing
  • Hospital and Medical
  • Rail and Transport
  • Education
  • Security

Operating Systems supported:

  • Windows® Family, Linux, MAC

Note: Other operating systems may be supported. For more information please contact Chase Power.

Connection:

  • Hardwired installation by qualified personnel

Management:

  • USB
  • RS-232
  • Options: SNMP, AS400, CMC Card (RS485)

Software:

  • Zeus Pro’s free UPS monitoring WinPower software can be downloaded from

http://www.ups-software-download.com/content/ups-download-software/download.html

UPS Supplied with:

  • UPS User Manual
  • Dry-Contact Plug

Optional Accessories:

  • Network Management SNMP Card
  • AS400 Card
  • CMC Card
  • Environmental Monitoring Probe
  • External Wrap Around Maintenance Bypass Switch (wall mount)
  • Parallel Kit
  • External Battery Cabinets
  • UPS Replacement Batteries
